Customizing Columns

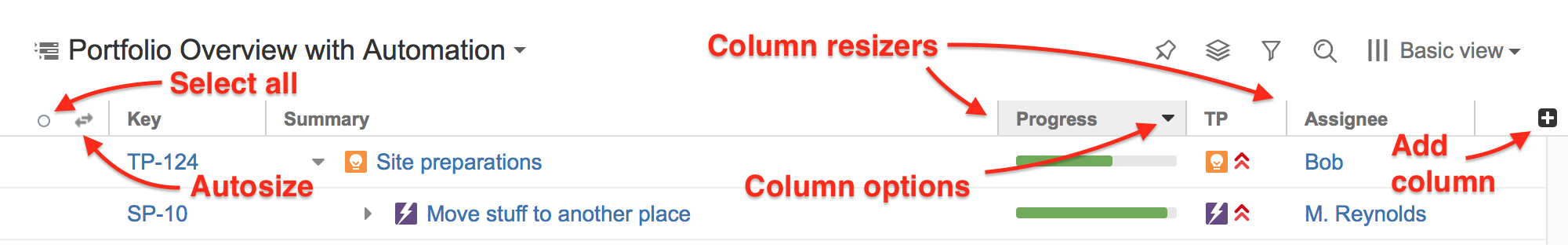

To configure structure columns, position the mouse pointer over the structure header. The grid controls should become visible, allowing you to select and resize columns.

When you add, configure, remove or rearrange columns, you make adjustments to the View that's being used to display the structure. An adjusted view is marked with a blue asterisk (*). The adjustments are stored in your browser and affect only yourself – to make the changes permanent and available to others, you need to save the view or create a new view.

Adding Columns

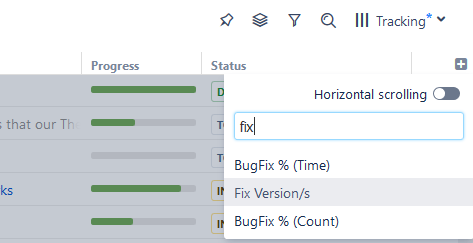

To add a column, click on the + button at the right corner of the table header. A drop-down with the available column presets appears. To select the desired column, you can:

• Use the mouse to find a specific column,

• Use the keyboard arrow keys to select the column and hit Enter when done, or

• Start typing the column name to filter the list, and then select the appropriate column.

To abort adding a new column, hit Escape.

Use keyboard shortcut TT to quickly open the Add Column dialog (hit "t" twice).

Configuring Columns

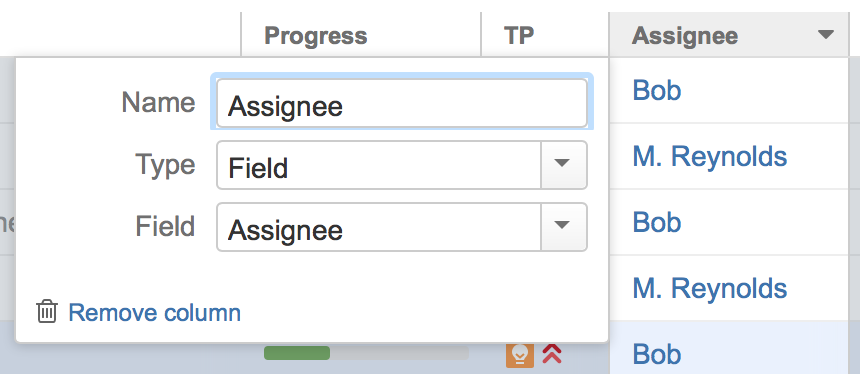

To configure a column, click the arrow icon in the column header. The column will be highlighted, and its configuration drop-down will appear, allowing you to change the column name, type and other options.

The particular set of options available for the column is determined by its type. For example, the Field column type lets you select the issue field to display and enable aggregation for numeric and time-tracking fields.

Any changes you make are applied immediately, so you can see the effect almost instantly. When you are happy with the column, simply close the configuration panel by clicking the arrow icon again or clicking anywhere outside the panel.

To cancel all of your changes use the "Revert changes" button at the bottom of the configuration panel. The column will be restored to its original state.

Removing Columns

To remove a column, click the arrow icon in the column header, then use the "Remove" button at the bottom of the column configuration panel.

You cannot remove the Summary Column, Flags Column or Jira Actions Column.

Rearranging Columns

You can change the position of a column by grabbing the column name with the mouse and dragging it to the left or right.

Resizing Columns and Autosize

Structure automatically tries to give all displayed columns enough space to display all information, but sometimes you might need to give more space to a column or two.

There are a number of ways to change column widths:

• Grab the resizer and drag. When you hover your mouse over a column, the resizer that is responsible for that column's width is highlighted. When the column size is close to what Structure considers ideal width (based on the displayed data), the resizer "snaps" to the perfect position.

• Hold CTRL and drag resizer. Works the same as above, but without snapping. You can use it to fine-tune column width.

• Hold ALT (Option) and drag resizer. In this mode, you will redistribute the space between two adjacent columns - increasing the width of one column and decreasing the width of another.

• Double-click the resizer or the column header. The column will automatically resize to the default size.

• Click the "Autosize" icon or double-click the Summary column. All columns will be resized automatically, based on the displayed data.

If you are unable to comfortably view all of the columns or need to stretch columns beyond the visible panel, you may need to enable Horizontal Scrolling.

Column widths are not part of the View and are not saved on the server or shared.
