Structure 9.0 Release notes

3rd of August 2023

Structure 9.0 introduces multiple notes columns, additional memo fields for high level planning, and more

Download the latest version of Structure and its Extensions

Try It: Structure Sandbox Server (no installation required)

Version Highlights

  • Multiple Notes columns
  • Additional memo fields

Changes in Detail

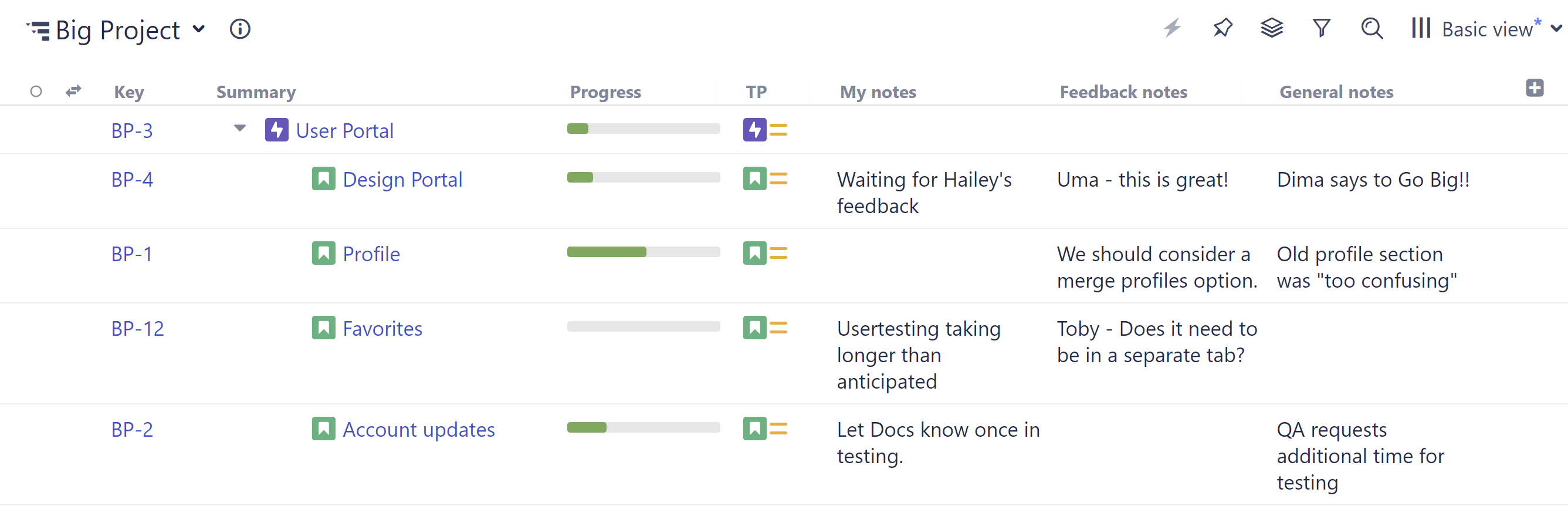

Multiple Notes columns

It's now possible to include multiple Notes columns within a structure, so you can take notes on as many topics as you need.

Documentation: Notes Column

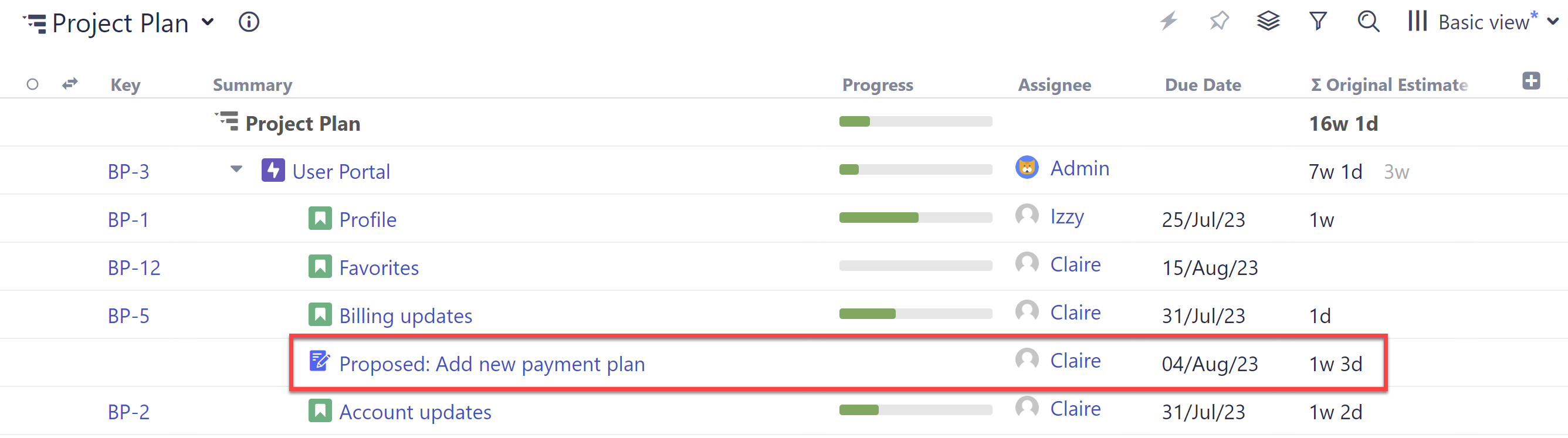

Additional memo fields

Manage your high-level planning without affecting Jira: Memos can now include field data for Assignee, Due Date, and Time Tracking fields.

These field values can be aggregated alongside your Jira issues and used in formulas.

Documentation: Memo

Additional Improvements

  • Time in Status improvements: Time in Current Status option is now available
  • Tempo Worklogged Column: added the possibility to clear all accounts
  • Fixed: Activity Stream gadget performance
  • Fixed: Formula values with dates had inconsistent formatting in Excel Export
  • Fixed: Status groups were not localized in Excel Export
  • Fixed: Opened structure wasn't added to the recent list
  • Fixed: Issue Type Name was not localized
  • Fixed: Multi-Level Cascading Select app values could be added but not saved via inline editing

Supported Versions

Structure 9.0 and all its extensions support Jira versions 8.20 or later. This release is for customers using Jira Server or Data Center (Jira Core, Jira Software, or Jira Service Management/Service Desk).

Compatible with:

Cloud customers can learn more about our products on the “Cloud” tab of our marketplace listing.

Installation and Upgrade

Pick a Time

We strongly recommend that you install and upgrade your apps during off-peak hours or scheduled maintenance windows. There are known issues in the Jira app infrastructure that may cause performance degradation and impede app installation when your Jira instance is under heavy load.

Installing Structure

If your Jira server does not have Structure yet, the installation is simple:

  1. Download and install Structure app, either from the Atlassian Marketplace or our Download page.
  2. When Add-on Manager reports the successful installation, click Get Started to visit a page with important guidance for the Jira administrator. You may want to also check out the user's Get Started page, available under the "Structure" top-level menu.
  3. Monitor catalina.out or jira-application.log for log messages from Structure.

Upgrading Structure

The upgrade procedure from versions 3.0–8.3 is simple:

  1. Consider backing up Jira data. Use Administration | System | Backup System. (If you have a large instance and a proper backup strategy in place, you may skip this step.)
  2. Back up Structure data. Use Administration | Structure | Backup Structure menu item. If you have a lot of structures and a large Jira, consider turning off the "Backup History" option to avoid a long backup process.
  3. Install the new version of the app.

  4. Monitor catalina.out or jira-application.log for warnings or errors.

Enterprise Deployment Notes

There are no special tests needed, so we suggest the usual testing procedures you’ve done for previous upgrades.

Need help or have questions? Contact Tempo Support.
