Structure on the Project Page

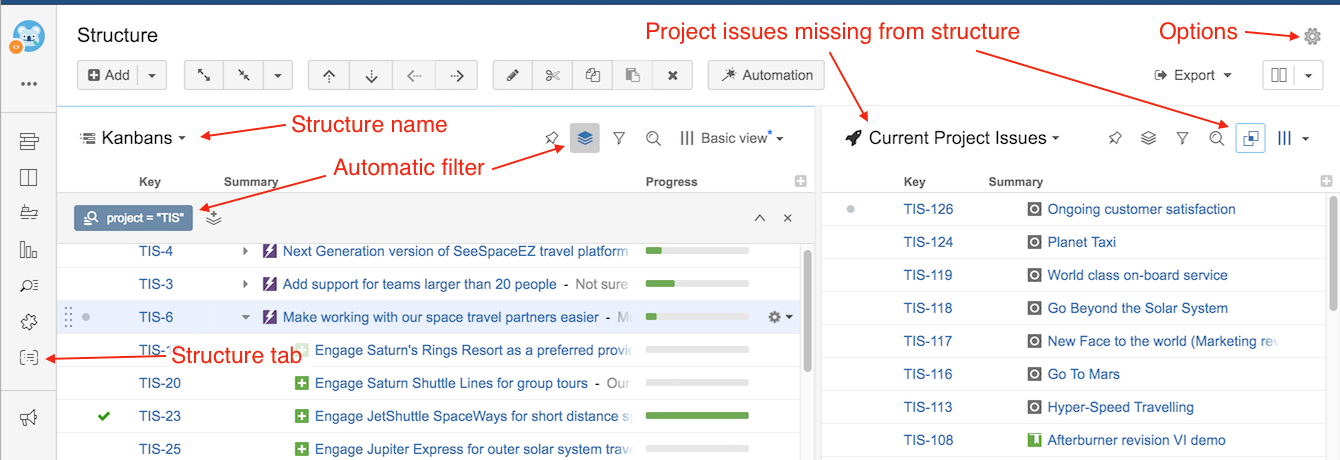

If a project is enabled for Structure, you will see a new Structure icon on the side navigation bar. Clicking this will open the Structure widget on the Project Page.
This is a fully-functional Structure widget and has the same functionality you can find on the Structure Board, with the following exceptions:
Scope
The current project defines the scope of the displayed data:
- An automatic project filter is added to the primary panel, hiding all issues from other projects. This is a non-removable transformation.
- Project issues will be displayed in the secondary panel.
If you'd like to see the full structure without the project filter, click the Open link in the Structure widget's footer.
Layout
When you open the Structure tab, the Single Grid layout is selected automatically. The panel displays the most recently viewed structure or the default structure for the current project (as defined in the Options dialog). You can quickly switch to another structure by clicking the structure name and selecting the desired structure.
Project Page Options
You can make the widget open with the structure that is defined as a default structure for this specific project.

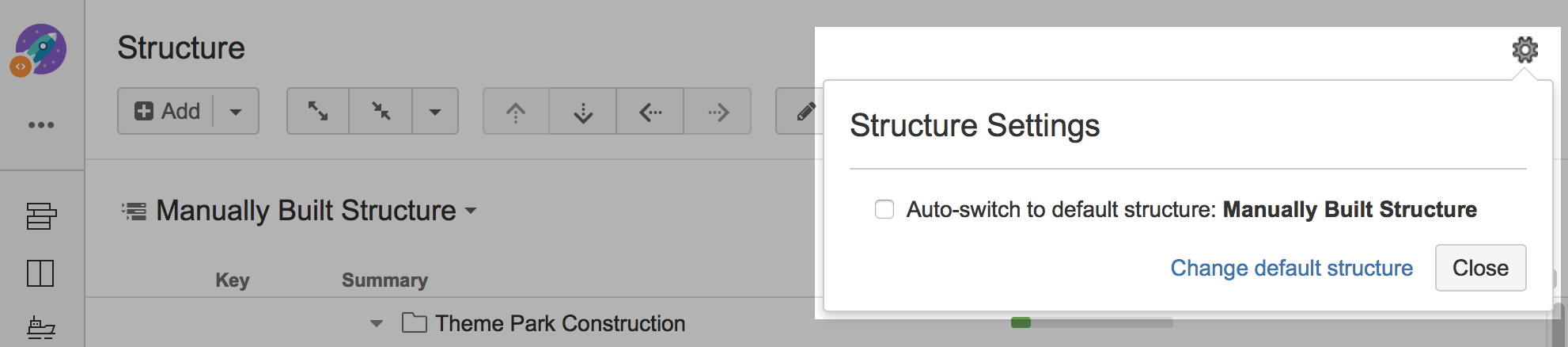

To do this, click the options gear button in the top right corner and select the Auto-switch option. The changes are saved to the server and applied immediately.
If you are the Project Administrator, the options dialog will also show the link to a page where you can change the default structure for your project.
Perspectives are Unavailable
It is not possible to share a perspective from the project page.
