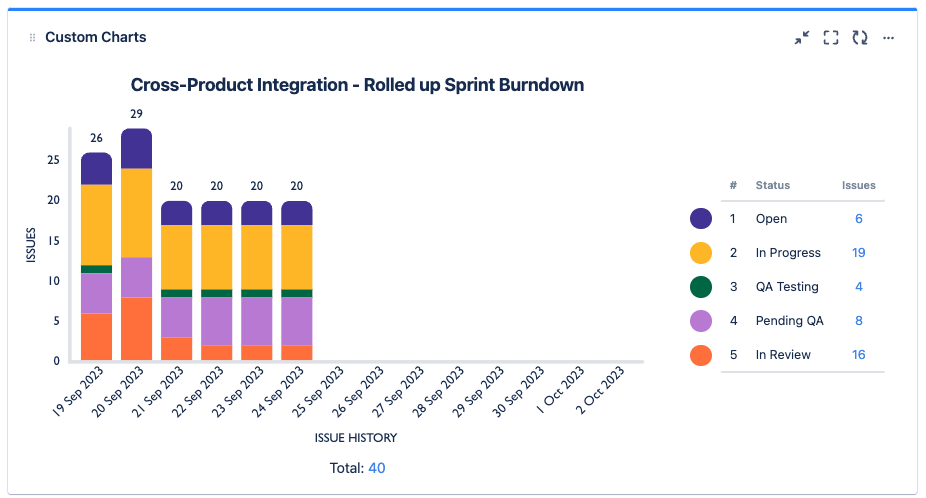

Reporting - Build a Burndown Chart with Structure and Custom Charts
Track your project in Structure, and then create a burndown chart using our Custom Charts integration.
The following guide requires Custom Charts for Jira. If you don't have Custom Charts, you can try if for free.
Build Your Structure
If you already have a structure for your project, skip ahead to step two. If not, the following resources can help:
Building a Structure with Automation
- Sprint Planning with Structure

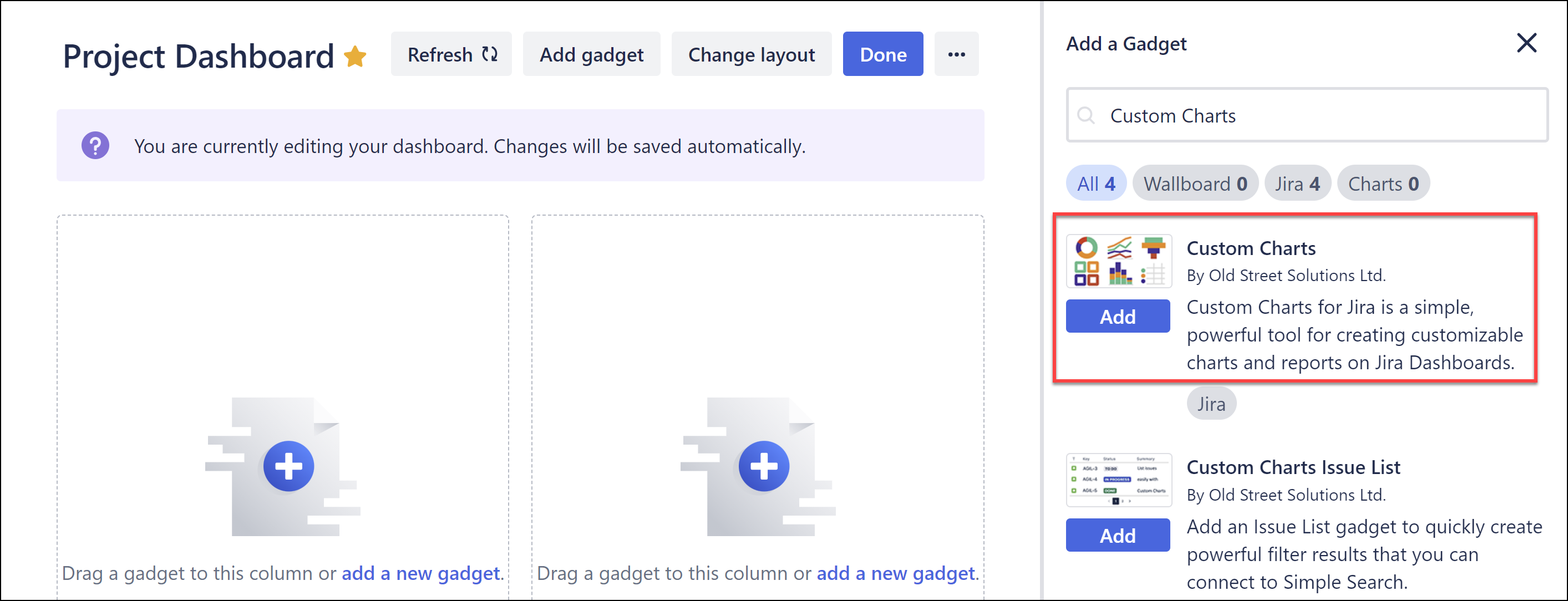

Add a Custom Chart to the Dashboard
- Open your dashboard (or create a new one).
- Select add a new gadget and search for Custom Charts in the gadget list.

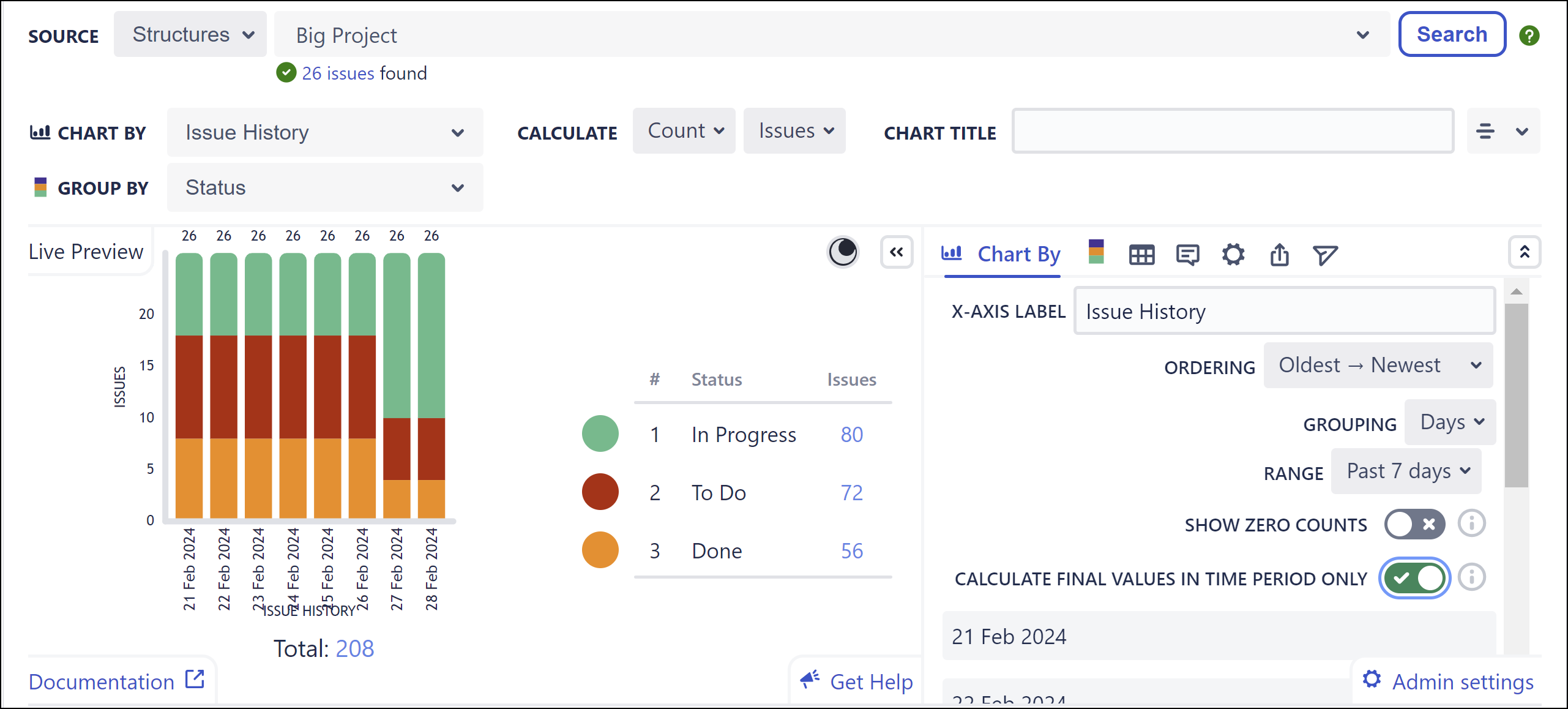

Configure the Custom Chart
Configure the chart with the following settings:
Type: 2D Stacked Bar Chart
Source: select Structure and search for your project structure
Chart by: Issue History
Group by: Status
In the Chart by tab, enable Calculate final values in time period only toggle
OPTIONAL: update the Grouping and Range settings to customize the appearance and dates for the chart
Need to add the chart to a Confluence page? Try Custom Charts for Confluence
