Gantt Chart Elements

Every Gantt chart consists of two parts:

  • Work breakdown structure, which defines the scope of work and is built using Structure functionality

  • The chart itself, which visualizes your tasks on the timeline, showing their start and finish dates, dependencies between them and other information

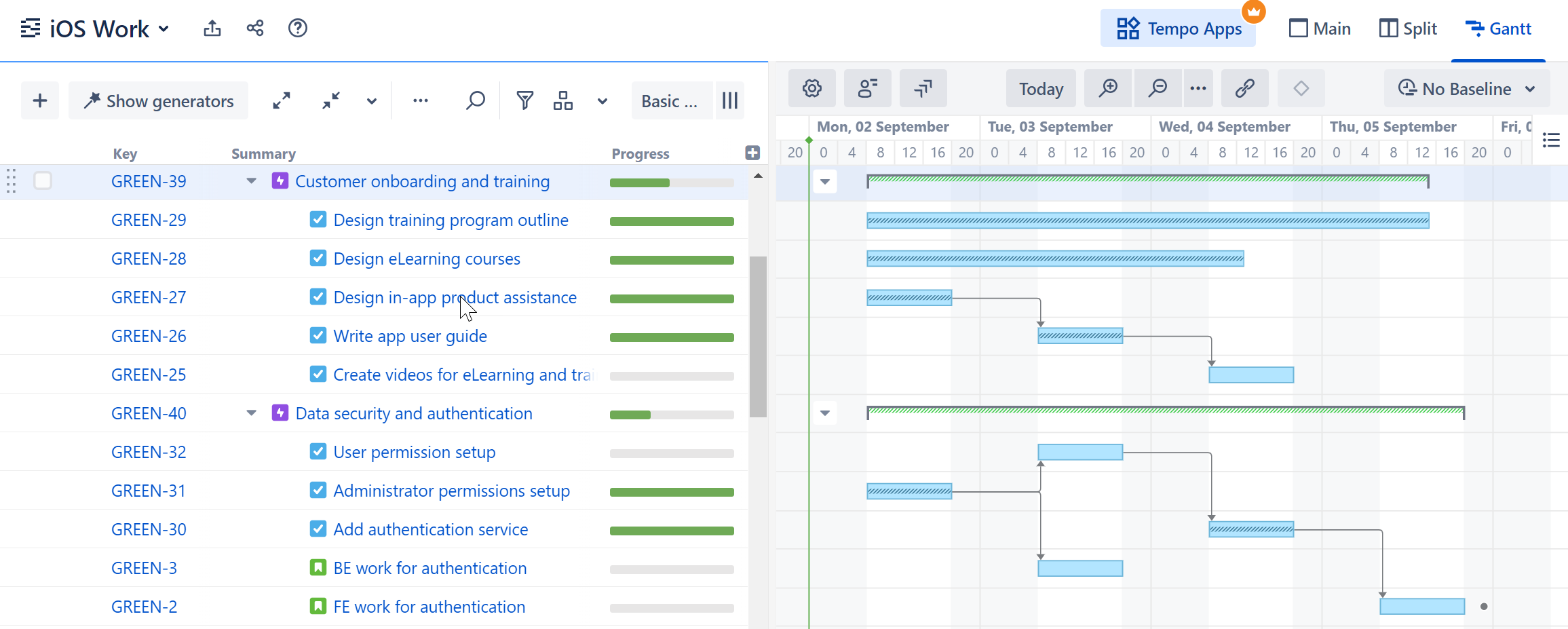

Structure and Gantt

This guide assumes you already have a working knowledge of Structure - if not, check out Getting Started with Structure Cloud. The following sections will cover those elements specific to Gantt Charts for Structure.

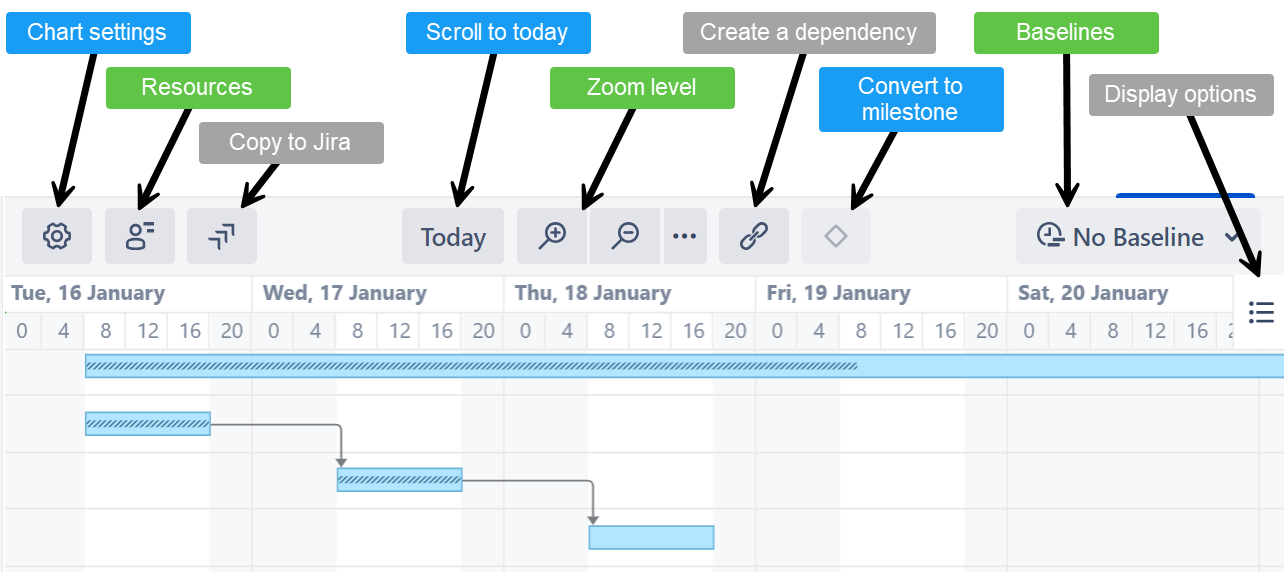

Using the toolbar, you can:

Gantt toolbar

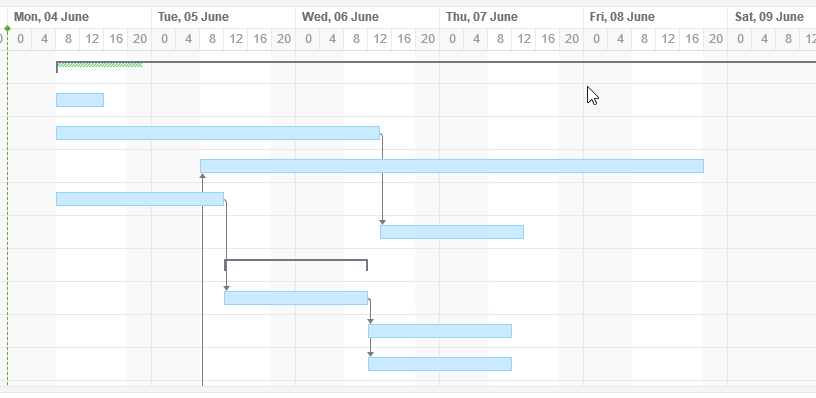

Your timeline contains visual representations of tasks, dependencies, progress, milestones and other key dates.

It is also where you will do most of your work. You can also adjust tasks and dependencies directly from your timeline.

Gantt Timeline

Gantt Timeline

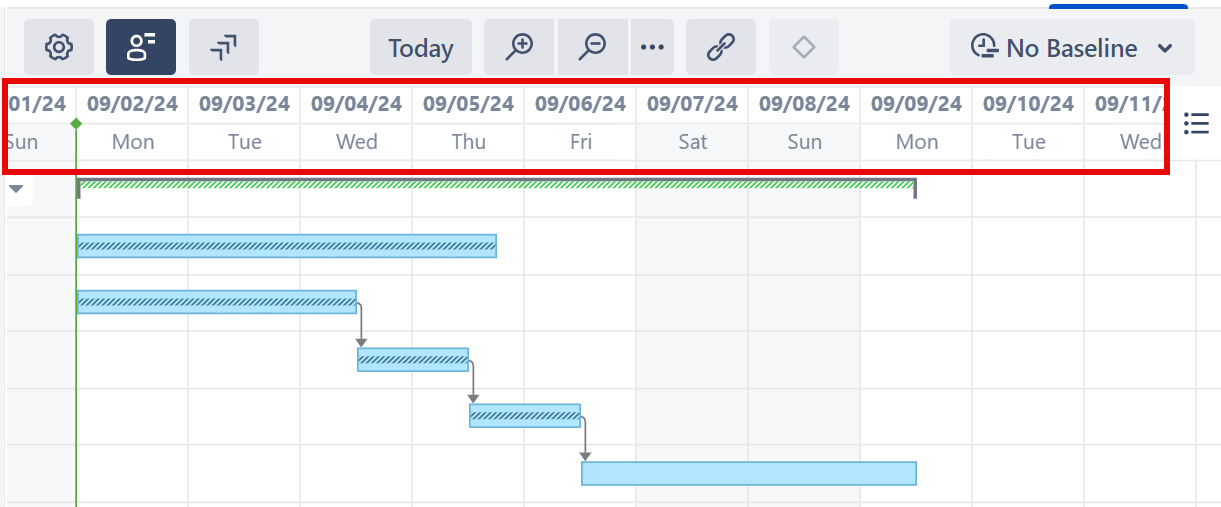

Timeline Header

By default, the timeline header displays date and timeline increments, both of which change depending on your view level:

  • zoom out to see larger intervals like months, quarters, or years.

  • zoom in to see more granular details, such as weeks, days, or hours.

You can also visualize other time-based intervals:

  • If you enable Sprint-based Scheduling, sprints will be shown in the top line of your header.

  • If your team uses SAFe Program Increments, you can customize the header to display those as well. Go to Gantt Settings | Timeline | SAFe view and select View program increments on the timeline. Learn more: Gantt Chart Elements

Time Scale

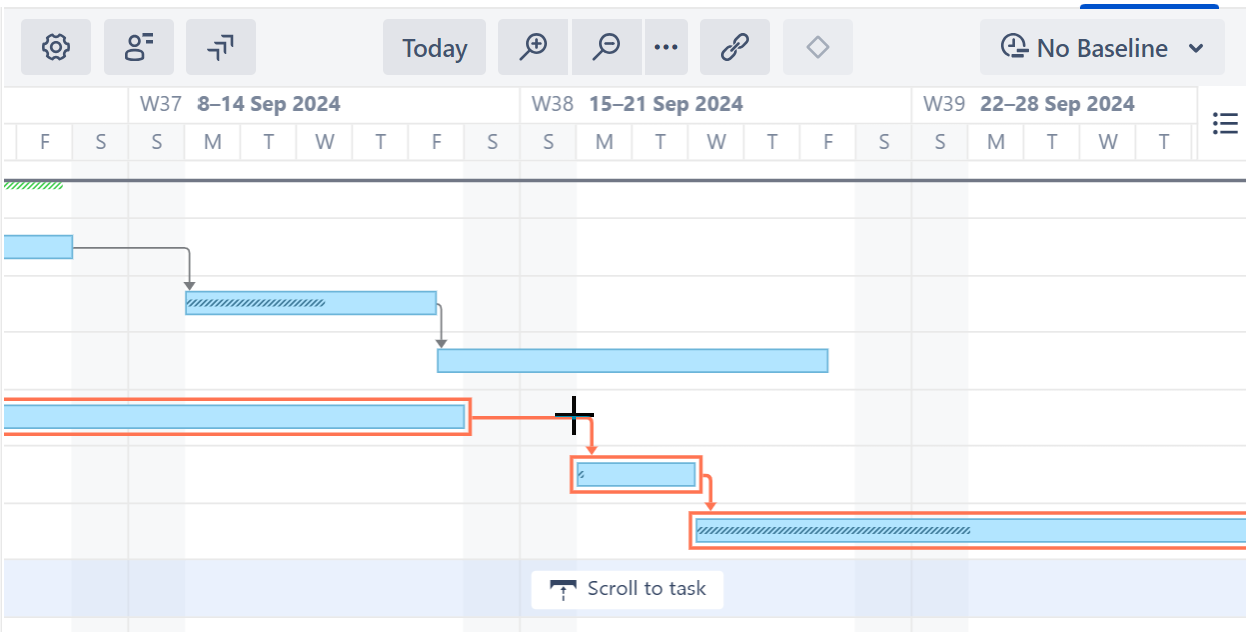

You can quickly navigate or focus your timeline in a variety of ways:

      • Zoom in or out to see more or less of your timeline

      • Scroll horizontally or vertically

      • Hold the Shift key and drag the chart with your pointer

      • Focus in on the current date with the Today button

      • Navigate to the current task with the Scroll to Task button (only appears if the currently-selected task is not visible)

Navigating the Gantt timeline

Navigating the Gantt timeline

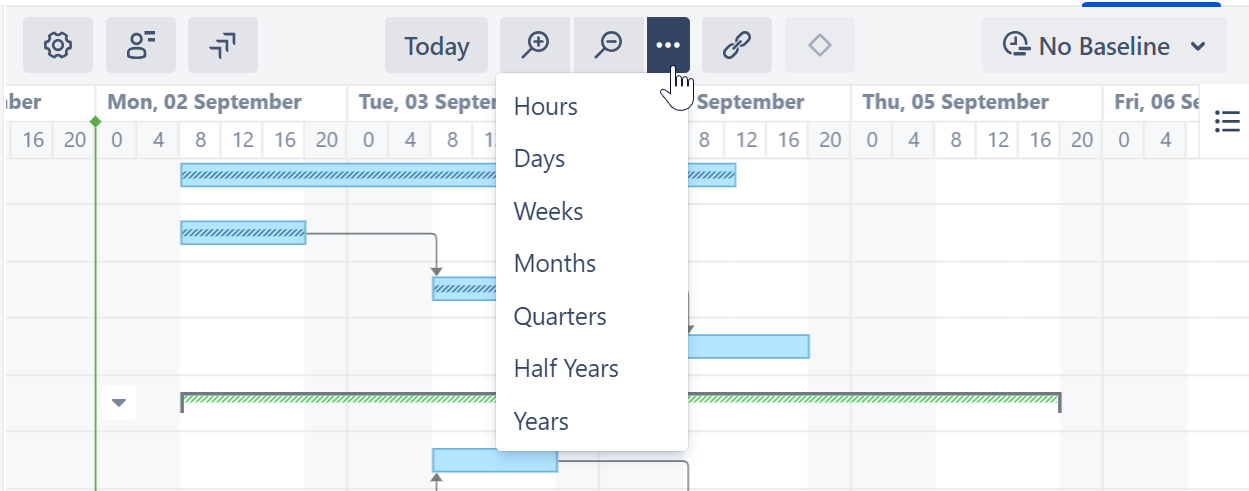

Zoom Level

To adjust the zoom level of your chart, use the + or - magnification buttons in the toolbar.

You can also zoom in or out using your mouse wheel, by holding down the ctrl button (cmd on macs).

To view issues based on a specific time scale, such as weekly or monthly, use the press the three dots beside the magnification buttons.

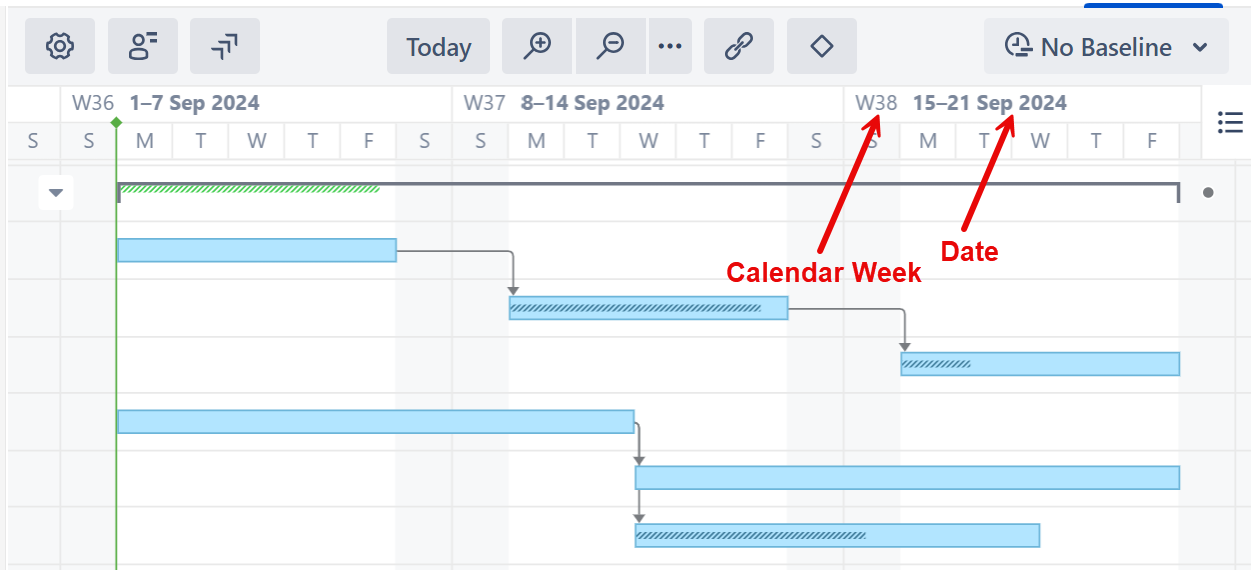

Week Numbers

If you zoom out to a point that weeks are shown, Gantt will list both the dates and the corresponding week numbers:

Calendar with week numbers

Calendar with week numbers

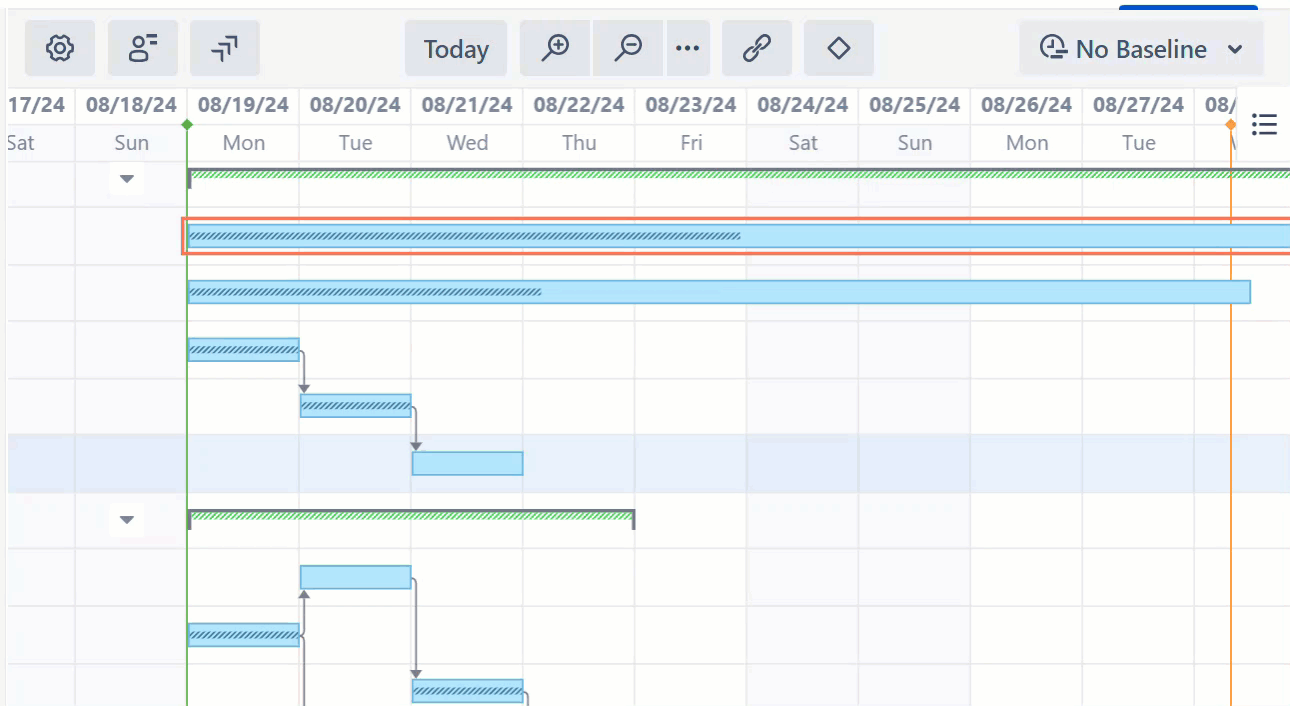

Start Day and Current Date

The project start date is indicated by a green vertical dashed line. The current date/time is indicated by an orange vertical line.

Mousing over the point at the top of either line will display the exact date.

Start Day and Today's Date

Start Day and Today's Date

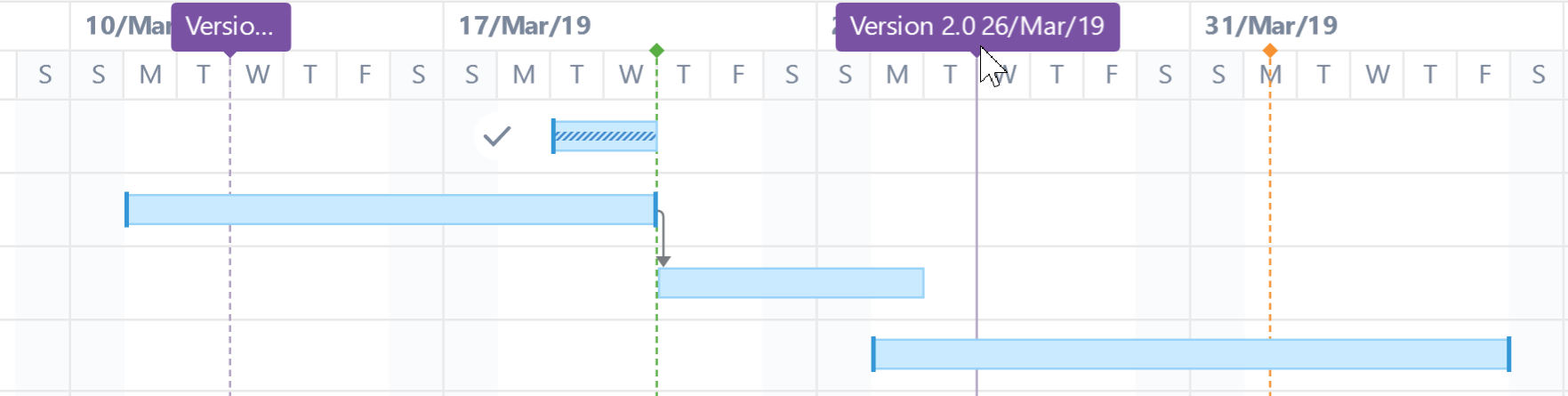

Fix Versions

Fix Version markers display version names. By hovering over a marker, you can also see the release date and project key (if versions are shown for multiple projects).

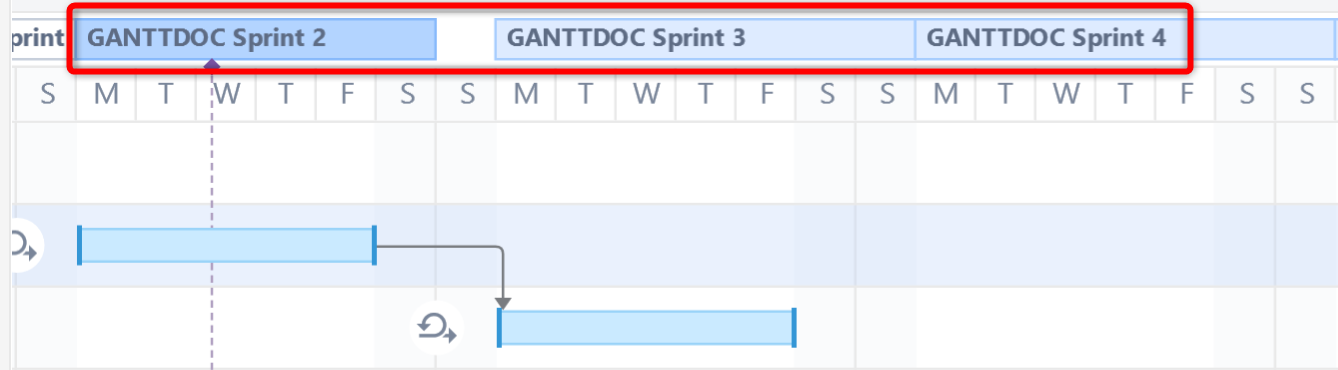

If the highlighted task is manually scheduled by sprints, sprints from the corresponding board will be displayed at the top of the timeline when the task is selected.

Sprints are visualized based on sprints already defined in a Jira board or anticipated sprints based on your chart settings. (See Sprints Configuration for instructions on specifying sprint timelines.)

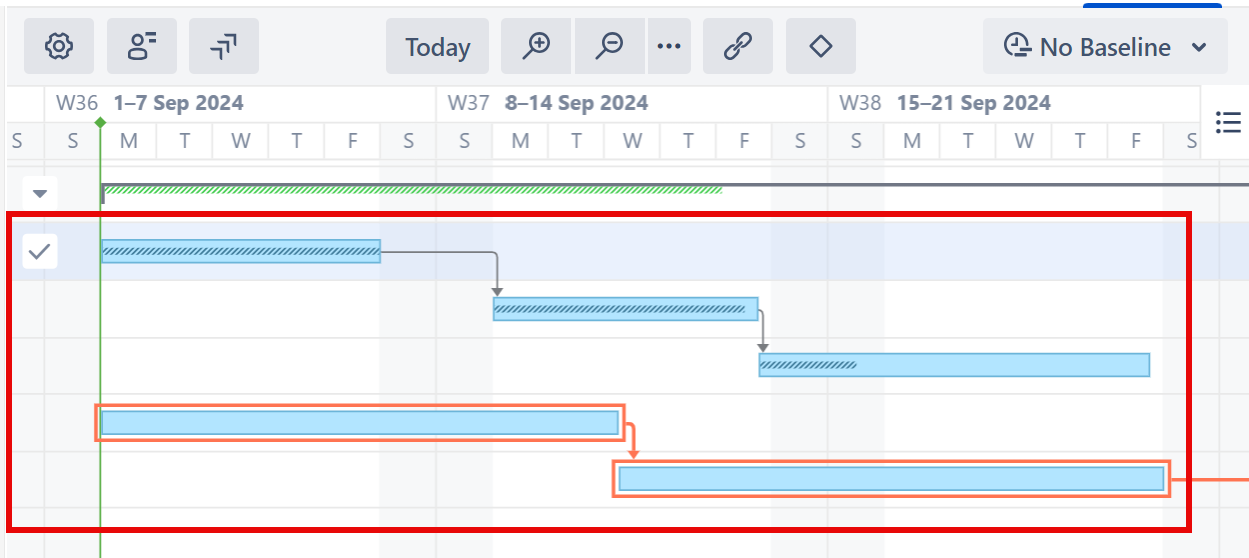

Task Bars

Structure items are represented in the chart as task bars.

  • A task's position on the timeline is based either on its dependencies or on manually-set Start and/or Finish dates.

  • If you have configured Gantt to track the progress of tasks, that will be shown inside the bar. To show/hide progress, use the Display Options menu.

  • Completed tasks can be marked with a check icon. To show or hide Task Indicators, use the Display Options menu.

  • If a task is part of the critical path, it is shown with a red box around it. You can show or hide critical path highlighting using the Options menu in the Gantt toolbar.

Task Details Panel

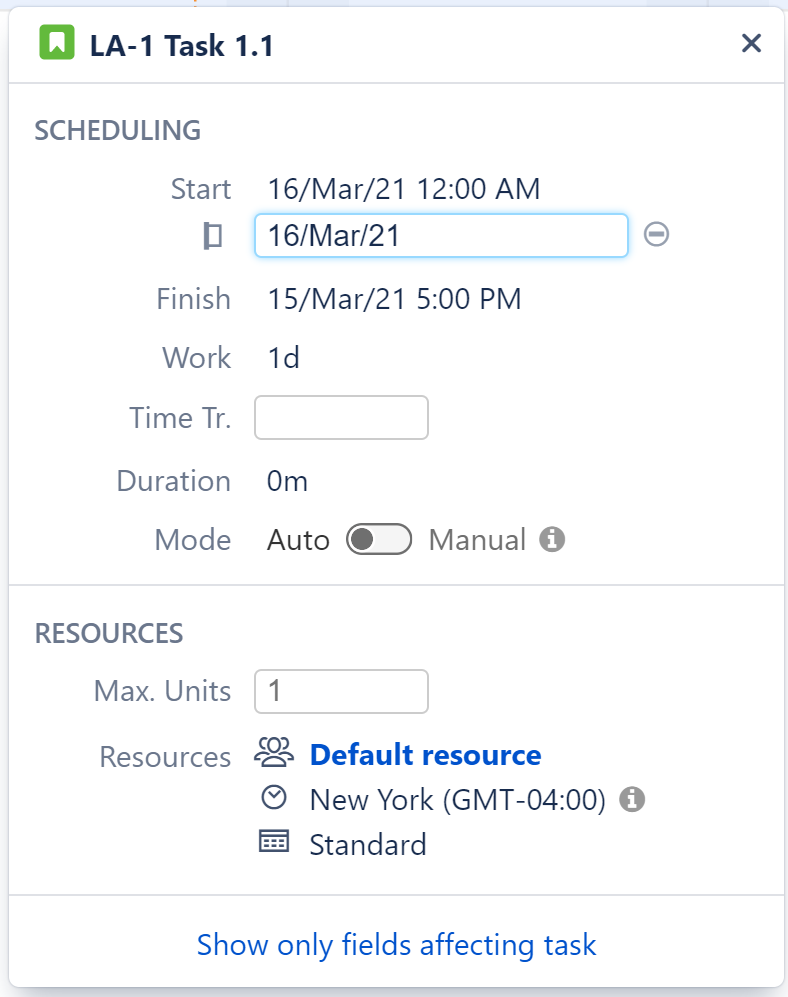

Clicking a task bar will display the Task Details panel, which contains information about the task's scheduling and resources.

Task Details Panel

For more information, see Task Details Panel.

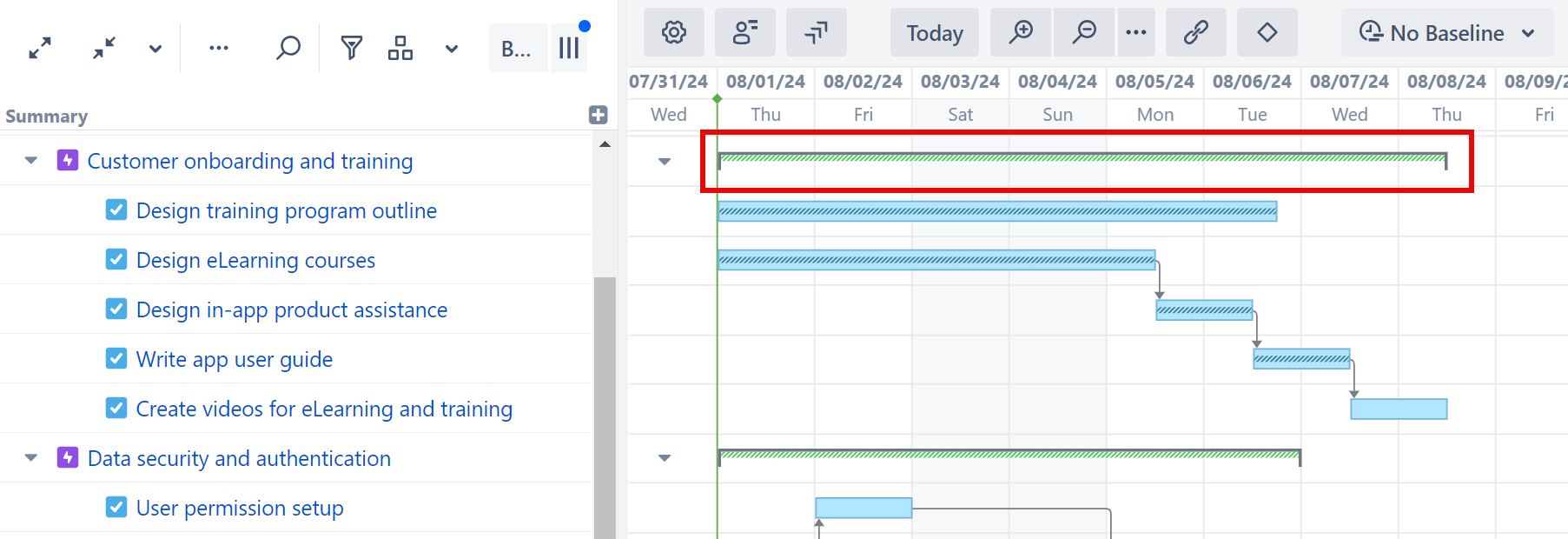

If an element has children in a structure, it can be shown as a Group.

  • A group's Start Date and Duration are calculated automatically, based on the Start Date and Duration of the elements it contains.

  • If the group is an issue which has its ownStart Date and Duration values, these are ignored.

  • Progress for the group is calculated as an aggregation of its children's progress, and the element's own task progress is ignored as well.

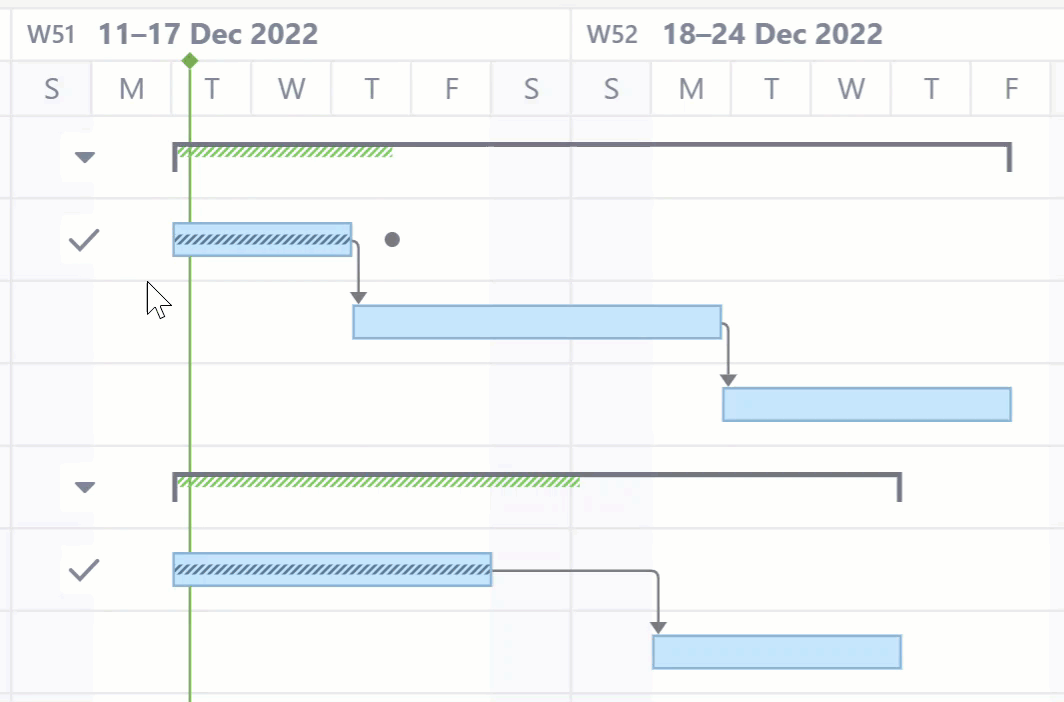

Expanding/Collapsing Groups

To show or hide the tasks within a group, click the triangle to the left of the group.

In order to display child/parent relationships as a group, you first need to enable grouping in Gantt configuration

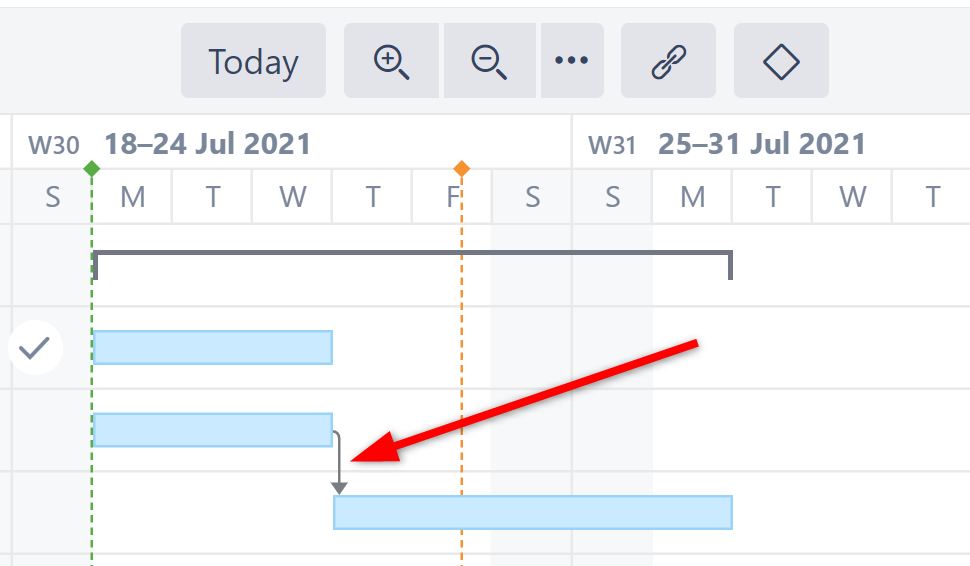

Dependencies are displayed as arrows between task bars.

  • Click the arrow to show the Dependency Properties

  • To show/hide dependency arrows, use the Options menu in the toolbar


For more information about managing dependencies, see Dependencies Configuration.

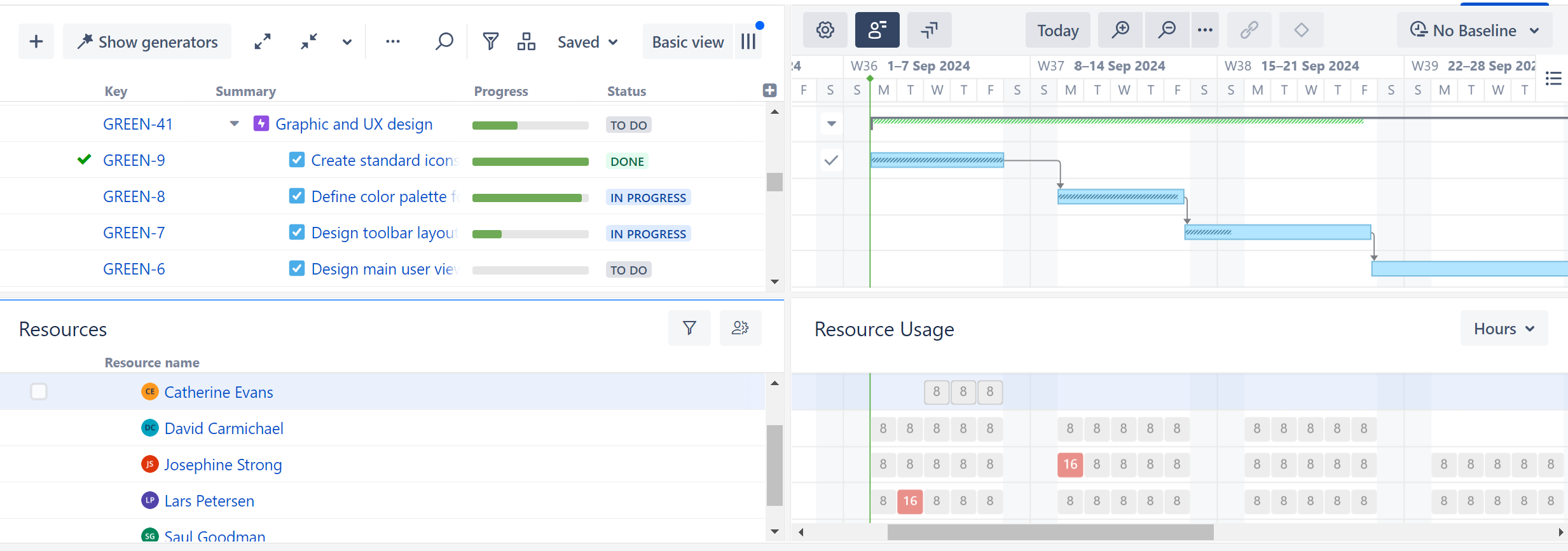

To view resource allocation on you Gantt chart, click the Resources button in the Gantt toobar.

The Resources section of your chart is split into two panels:

  • Resources - Displays a list of all resources based on your Resources Configuration.

  • Resource Usage - Displays the workload for each resource at a given time.

Resource Panels in Structure.Gantt

If you don't see any resources in this list, make sure you've configured them. See Resources Configuration.

For more information about managing resource, see Resources and Resource Usage.

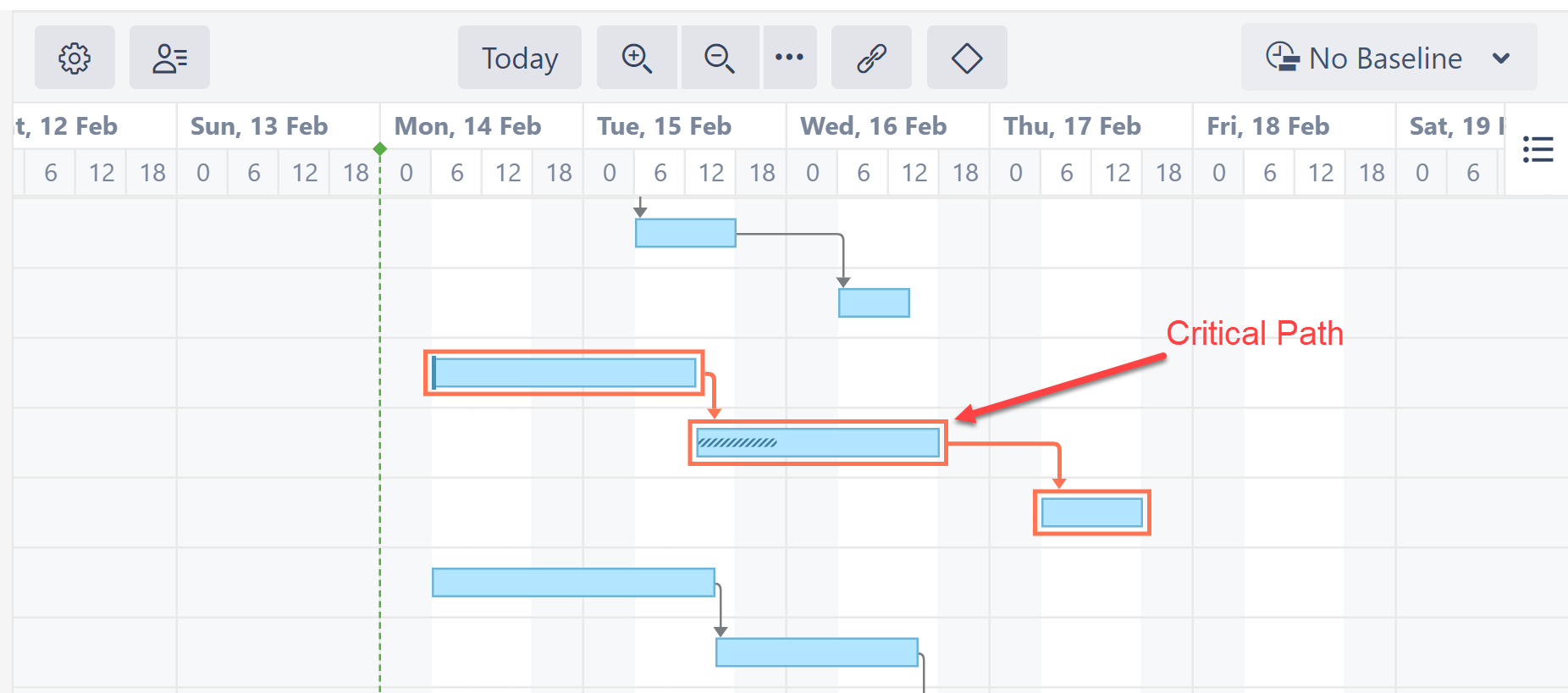

Critical Path

The critical path highlights items that directly affect the project's end date. It includes the task with the latest Finish Date, as well as any items that, if delayed, will also delay that last task - and extend the project's end date.

If a task is part of the critical path, it is shown with a red box around it. The dependencies that make up the critical path are also shown in red.

Critical Path

To switch off Critical Path highlighting:

  1. Select the Options menu in the toolbar

  2. Uncheck Critical Path

The critical path does not affect your chart or the issues within it in any way - it's simply a visual indicator.

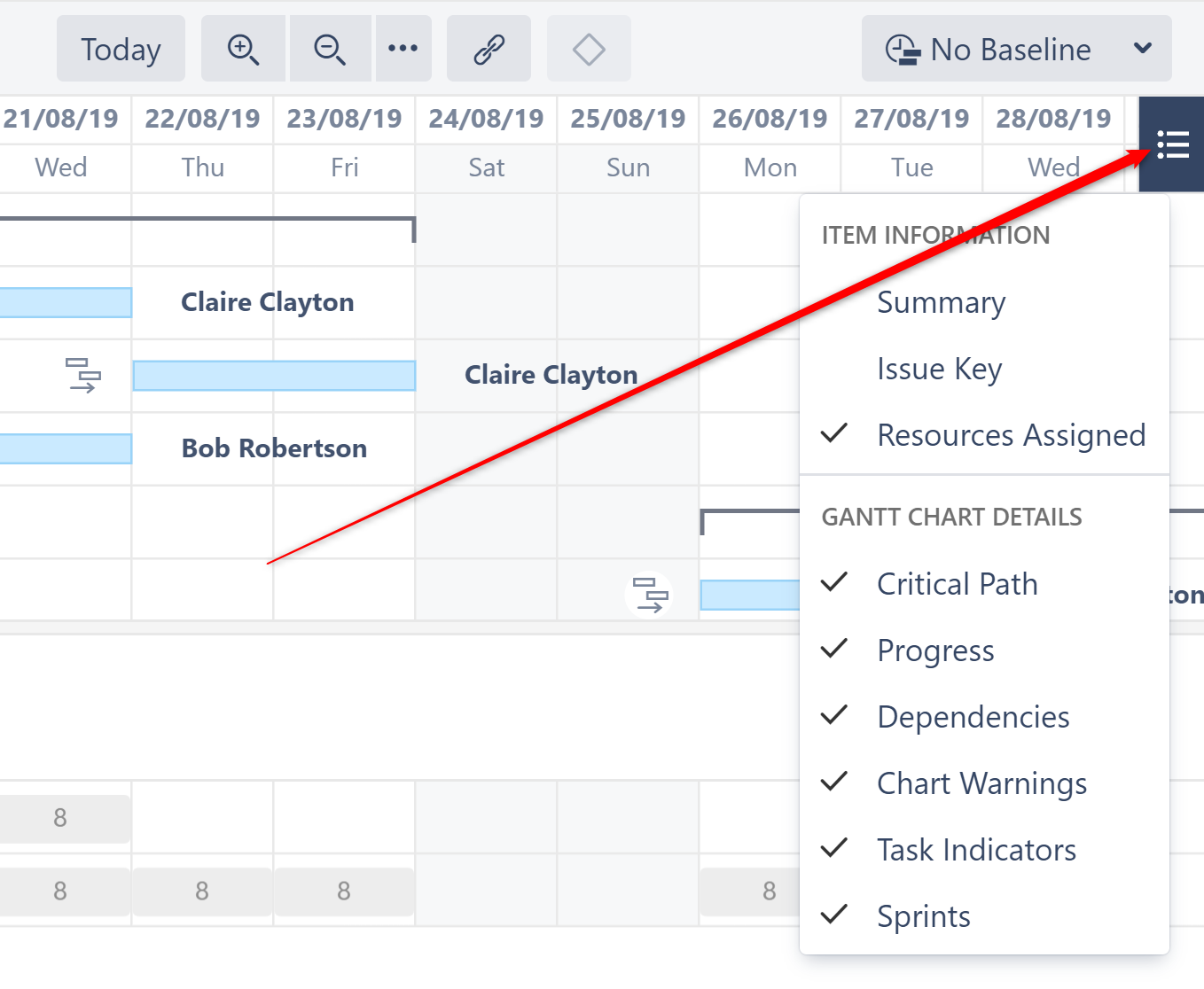

Display Options

The Options menu allows you to select what elements should be shown in the chart.

You can show/hide:

  • Summary

  • Issue Key

  • Resources

  • Critical Path

  • Progress

  • Dependencies

  • Chart Warnings (such as another time zone or different calendar)

  • Task Indicators (see Task Indicators)

  • Sprints (Note: If this option is switched off, sprints will still be displayed when dragging sprint-scheduled tasks.)

  • Custom chart markers

  • Status Bar

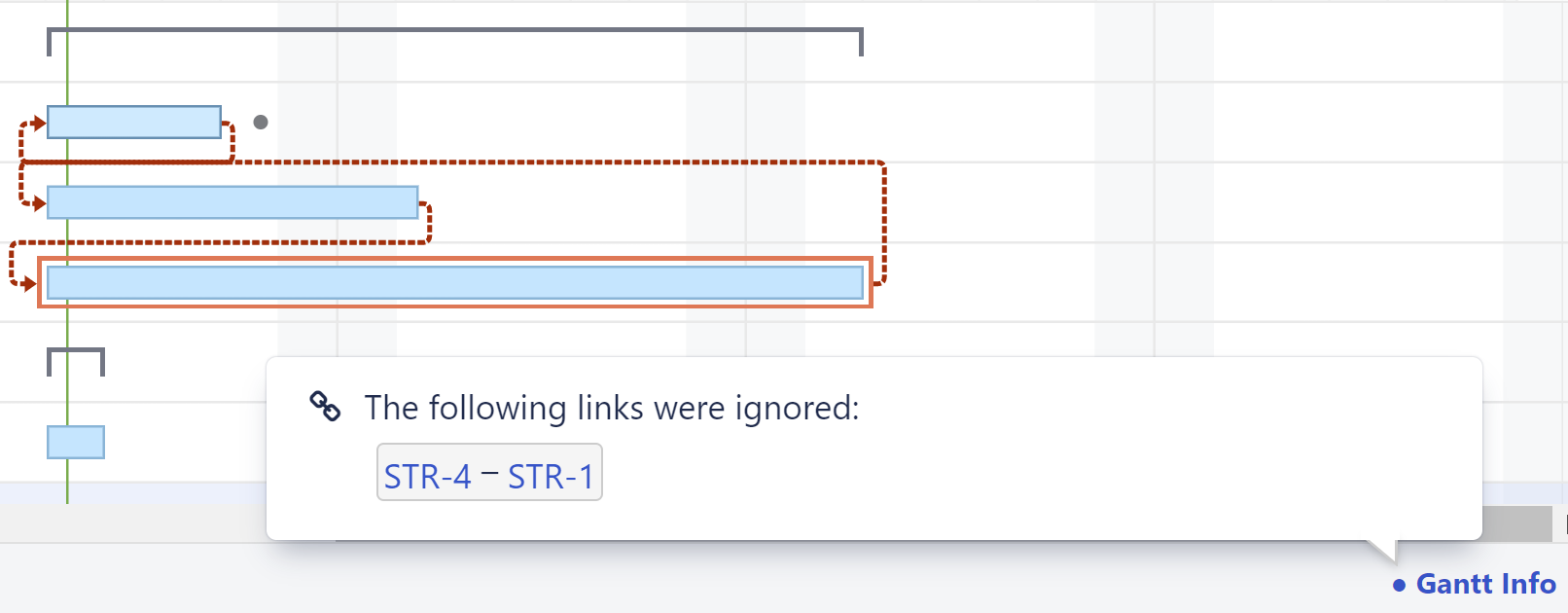

If there are any inconsistencies in the source data (for example, a cycle of dependencies), the Gantt Info link will be shown on the right side of the Structure status bar (next to the Structure Info link (info) at the bottom of the screen). Click the link to see details of the inconsistencies.

If you do not have permission to edit the Gantt chart, that information will be displayed in the Status Bar as well.

Next Steps

Next, we'll look at how items can be scheduled and updated within the Gantt chart: Working with Gantt Charts
