Customize the look and feel of your charts with the following options.
The options detailed on this page vary based on the type of chart you use; not every option is available for every chart type.
Chart options
|
Option |
Available On |
Description |
|

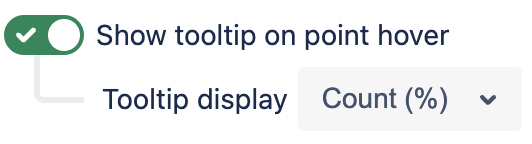

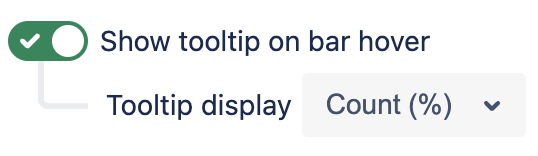

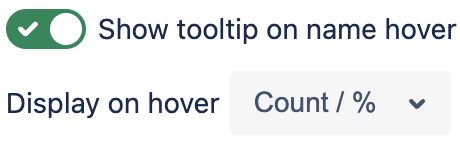

Show tooltip on point/bar/name hover |
All charts
|
Displays a tooltip when you hover a section of the chart. |
|

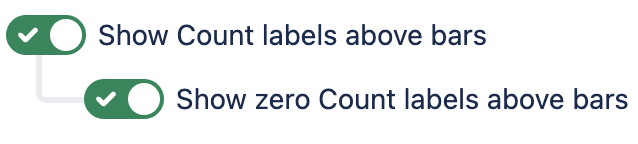

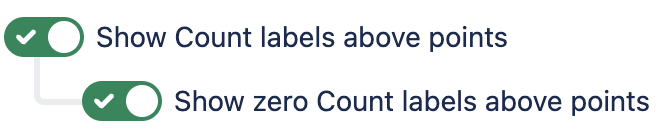

Show Count labels above points/bars |
Line and bar charts
|
Displays the total for each segment above that segment in the chart. Enable Show zero Count labels above bars/points to show counts without any totals in the chart. |
|
Maximum pie chart diameter |
Pie charts |
Sets the maximum diameter of a pie chart. |
|
Show number column |
Pie, bar, 2D line, and funnel charts |
Adds a column to the chart’s legend that identifies the order of each row. |
|
Limit rows |
Table and tile charts |
Sets a limit to the number of rows rendered in the chart. |
|
Show connecting lines between points |
Line charts |
Displays a line connecting each point of data on the chart. |
|
Show horizontal gridlines |
Line and bar charts |
Displays horizontal gridlines on the chart. |
|
Show vertical gridlines |
Line charts |
Displays vertical gridlines on the chart. |
|
Show vertical hover line |
Line charts |
Displays a dotted vertical line when hovering over the main area of a chart. |
|
Show Count total under chart |
Line, bar, and tile charts |
Displays the total count of the tracked Jira field under the x-axis' label of the chart. |
Axis and label options
|
Option |
Available On |
Description |
|
Heading |
Pie, 2D line, 2D bar, 1D table, and funnel charts |
Customize the legend’s heading. For 2D charts, you can customize the headings for chart by and group by fields. |
|

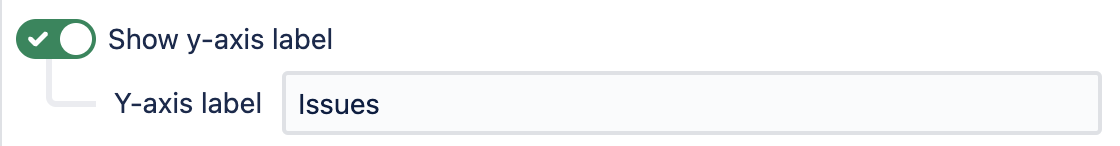

Show y-axis label |
Line and bar charts |
Toggles the label for the chart’s y-axis. You can also rename the axis if one is displayed. |
|

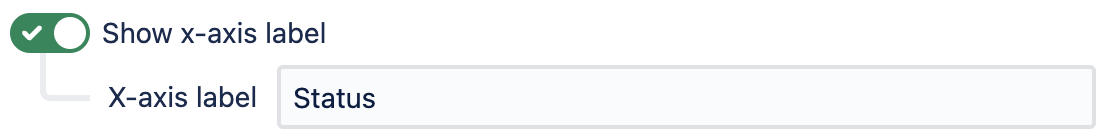

Show x-axis label |
Line and bar charts |
Toggles the label for the chart’s x-axis. You can also rename the axis if one is displayed. |
|
Y-axis height |
Line and bar charts |
Sets the height of the y-axis in pixels. |
|
Y-axis unit |
Line and bar charts |
Displays the y-axis value as a count or a percent. |
Legend options
Legend options are only available for pie charts, bar charts, 2D line charts, and funnel charts. These options are also available for 1D line charts that use a goal, average, or trend line.
|
Options |
Description |
|
Show legend |
Displays a chart’s legend. |
|
Show legend headings |
Displays headings for each column in the legend. |
|
Show total row |
Displays a row in the legend showing the totals for each column. |
|
Legend position |
Select where to position the legend in the chart. |
|
Legend layout |
Select how the layout of the legend. |
|
Limit legend rows |
Sets a limit to the amount of rows in the legend. |
General options
The following options are available for all chart types.
|
Setting |
Description |
|
Number format |
Sets the display format for numbers in the chart. |
|

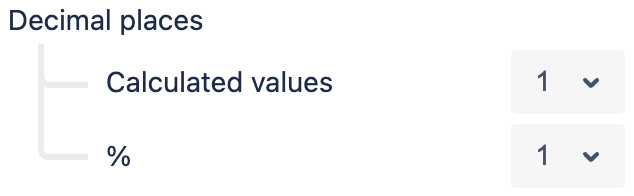

Decimal places |
Sets the amount of decimal places to show for Calculated vales and percentages. |
|
Date format |
Sets the display format for dates. |
|
Time unit |
Sets the format for time units on charts that have calculations based on time. For example, Average Time Spent. |
|
Auto refresh every 10 minutes |
Enables auto refresh for the chart’s data. Jira admins can adjust the auto-refresh interval. |
|

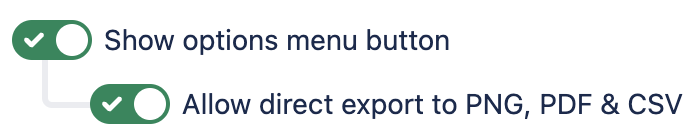

Show options menu button
|
Displays the options menu on a chart. When enabled, you can also enable the direct export of a chart to PNG, PDF, or CSV formats. |
|
Disable hyperlinks in issue list |
Toggles if users can select work items in the chart to view the item. |
