Custom Charts for Jira

Turn your curated Structure data into visual reports. Our integration with Custom Charts for Jira allows you to easily build dashboard reports, charts, graphs, and more based on your structures.

  • Use Structure as the source for your Custom Charts
  • Turn Structure data into visual reports for stakeholders and leadership
  • Build custom reports for sprint progress, retrospectives, time in status, burndown, programs, customer satisfaction, workloads, age of issues, cumulative spend, and more

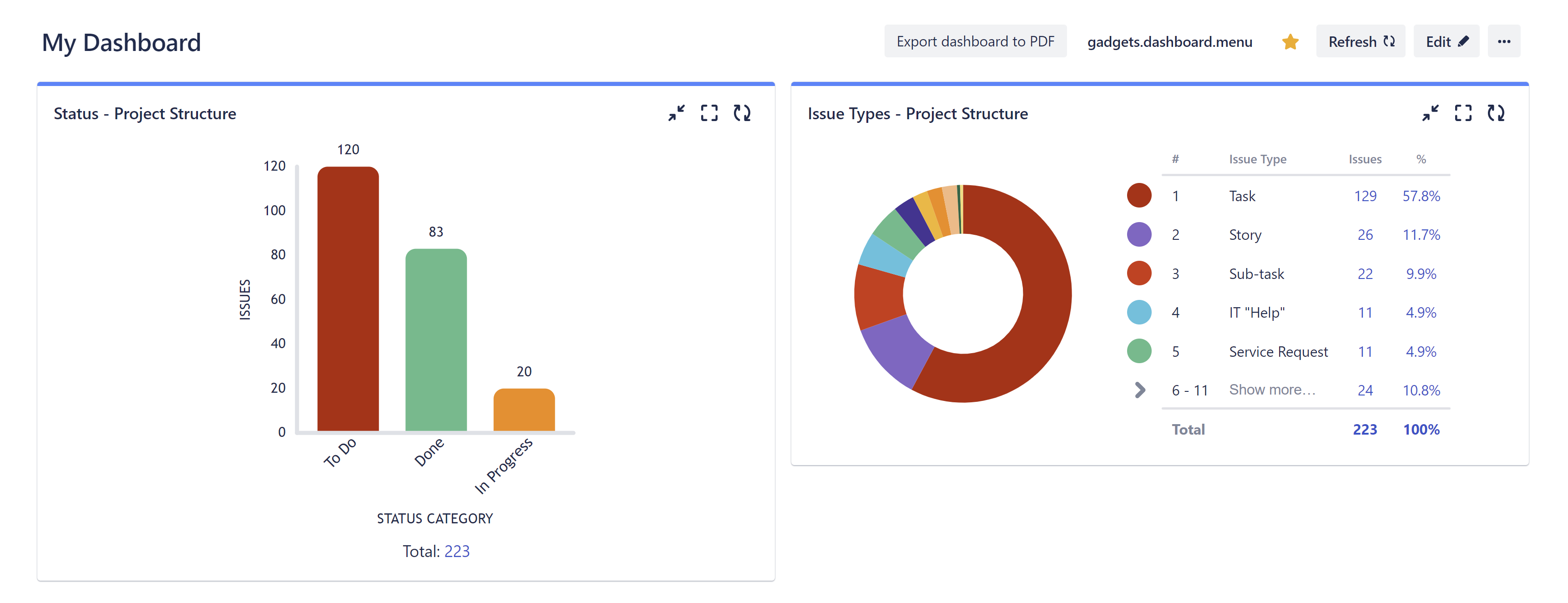

Jira dashboard with custom charts based on Structure

When added to your Strategic Portfolio Management solution, you can build custom reports to track the progress of your entire portfolio.

Don't have Custom Charts? Try it for free!

Build Custom Charts for a Structure

To build custom charts based on a structure:

  1. Make sure Structure and Custom Charts for Jira are installed.

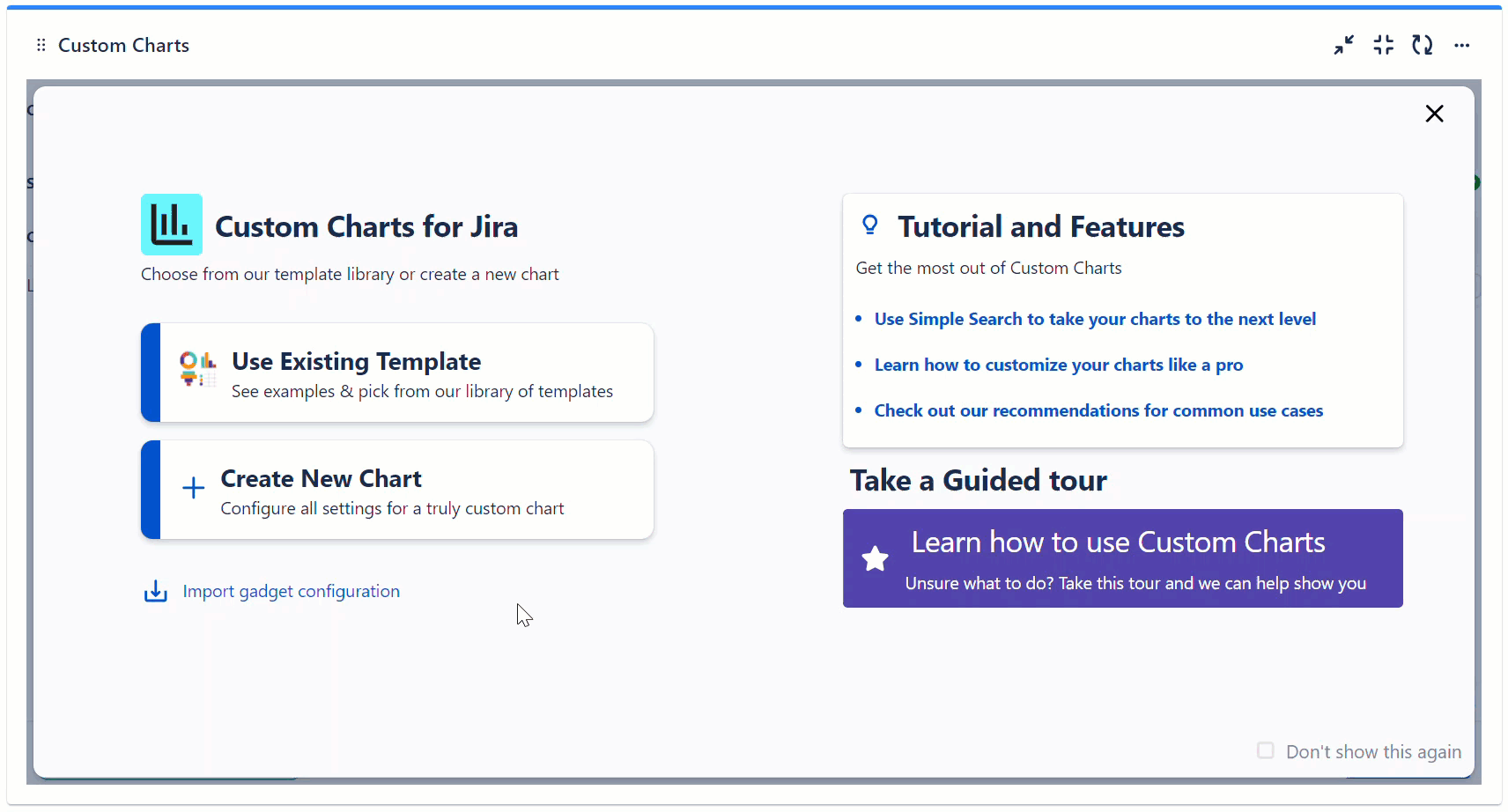

  2. From the Jira Dashboard editor screen, click Add gadget and search for Custom Charts. Select the first gadget from the list: Custom Charts.
  3. In the newly created gadget, open the Source dropdown and select Structure.
  4. Select the structure or structures you want to use for your chart. The resulting chart will be based on all the issues in the selected structure(s).
  5. Customize your chart. For more information see Build your first Custom Chart.

Enable Structure as a Data Source

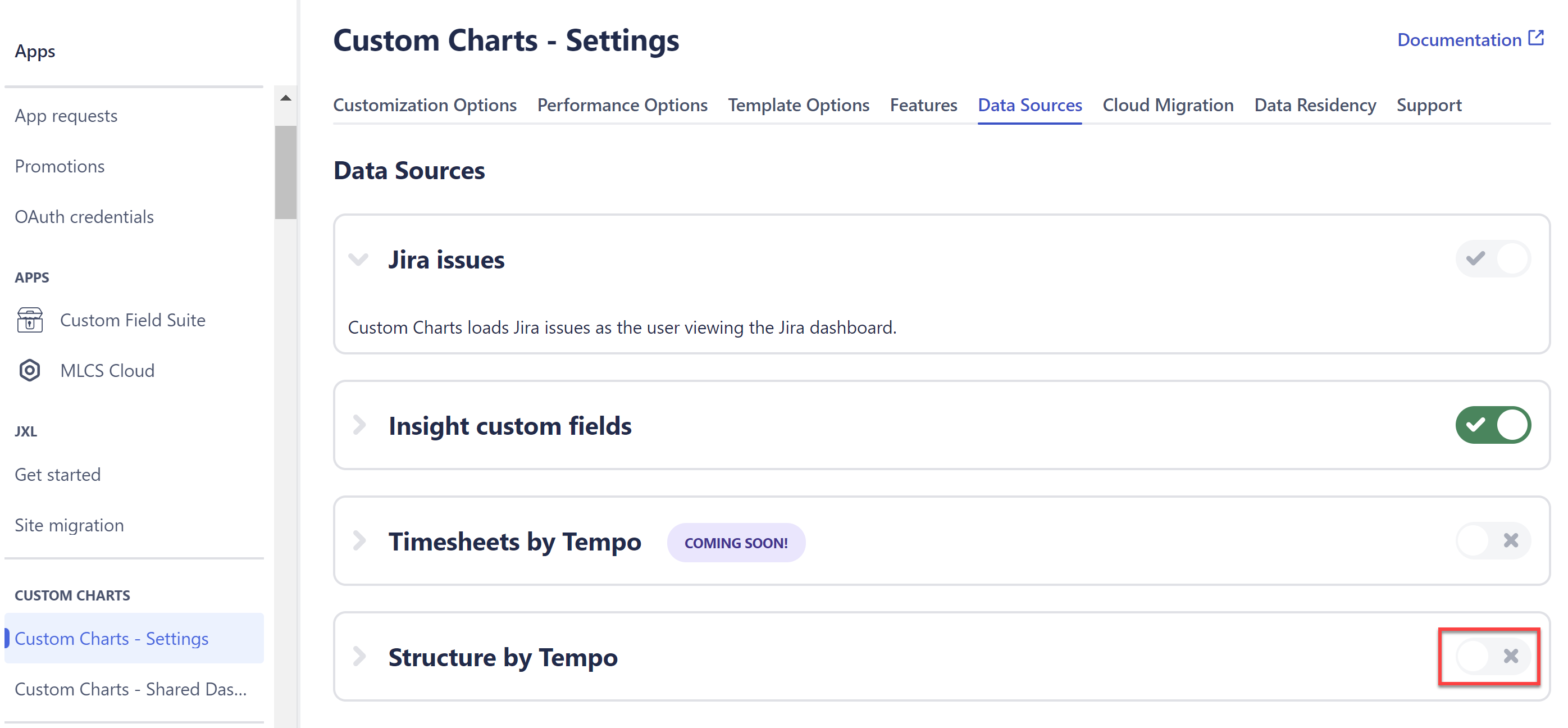

If you aren't able to select Structure in the Source menu, ask your Jira Admin to enable Structure as a data source for Custom Charts.

Admins: Go to Settings | Apps | Custom Charts | Data Sources and enable Structure.
